Lithium battery manufacturing

Vacuum solutions for the lithium-ion battery manufacturing process.

lithium_battery

Lithium-ion batteries are at the heart of e-mobility. They can currently store more charge per unit of mass than other battery types – and make reasonable ranges possible.

Key processes during their manufacture are performed under vacuum. Our vacuum solutions are operated at major lithium-ion battery production sites the world over. They are renowned for their reliability in all stages of the lithium-ion battery production.

Lithium-ion battery manufacturing process

Vacuum is a critical requirement in every stage of the manufacturing process of lithium-ion batteries.
From mixing, drying, filling, degassing up to sealing. Without vacuum, many steps wouldn’t even be possible.
lithium_battery_production_2
mixing

Slurry mixing

The initial mixing process of the slurry with lithium metal oxides, binding agents and solvents takes place under vacuum.
This prevents air bubbles from getting into the process and ensures a pure, homogenous paste.

The result: improved cell capacity.

Matching products
drying

Slurry drying

Vacuum is used in the drying process to gently remove moisture and other solvents.

Vacuum drying can be performed in batches (single chamber) or in-line (multi-chamber system, typically seven to nine chambers).

Matching products
filling

Electrolyte filling

The cell is evacuated with the help of vacuum to ensure that there is no remaining moisture or air. Afterwards the electrolyte filling also takes place under vacuum for an even distribution of the electrolyte within the cell.

Matching products
impregnating_1

Impregnating of the lithium-ion battery cell

The contact between the electrode and electrolyte is essential for the function and efficiency of the battery cell.

Vacuum assists this process to ensure that contact is without voids.

Matching products: R5 RA, COBRA NC/NX
degassing

Degassing of the electrolyte

The electrolyte is degassed under vacuum to eliminate air bubbles. Thus, lithium-ions are able to move freely enabling efficient charging and discharging of the battery.

Matching products

Need vacuum in your process?

We will design your tailor-made vacuum solution.

Our matching products

Our vacuum solutions are operated at major lithium-ion battery production sites. The world over. And are renowned for their reliability. In all stages of the lithium-ion battery production.


Slurry mixing
Slurry drying
Elecrolyte filing
Impregnation
Degassing


Vacuum pumps





R5 RA
COBRA NC/NX
MINK MM/MV




ZEBRA




Measurement equipment





VACTEST vacuum gauges
TAPIR leak detetors

Product details

R5 RA

  • Oil-lubricated rotary vane vacuum pumps
  • Improved cooling system for colder pump body
  • Reduced maintenance costs due to extended interval between oil changes
  • Higher ambient temperature possible
  • Manufactured in an IATF (International Automotive Task Force) 16949:2016 certified plant

Learn more about the R5 RA series

  • R5 RA 0025/0040 F
    R5 RA 0025/0040 F

    Nominal pumping speed:
    Min. 18.0 ACFM Max. 28.0 ACFM
    Ultimate pressure:
    0.075 TORR

    Learn more
  • R5 RA 0063/0100 F
    R5 RA 0063/0100 F

    Nominal pumping speed:
    Min. 45.0 ACFM Max. 71.0 ACFM
    Ultimate pressure:
    0.075 TORR

    Learn more
  • R5 RA 0155 A
    R5 RA 0155 A

    Nominal pumping speed:
    103.0 ACFM
    Ultimate pressure:
    0.075 TORR

    Learn more
  • R5 RA 0165–0305 D
    R5 RA 0165–0305 D

    Nominal pumping speed:
    Min. 112.0 ACFM Max. 212.0 ACFM
    Ultimate pressure (gas-ballast valve open/closed):
    0.375/0.075 TORR

    Learn more
  • R5 RA 0400–0630 C
    R5 RA 0400–0630 C

    Nominal pumping speed:
    Min. 305.0 ACFM Max. 455.0 ACFM
    Ultimate pressure:
    0.075 TORR

    Learn more
  • R5 RA 0520 A
    R5 RA 0520 A

    Nominal pumping speed:
    306.0 ACFM
    Ultimate pressure:
    0.075 TORR

    Learn more
  • R5 RA 0840 A PLUS
    R5 RA 0840 A PLUS

    Nominal pumping speed:
    235.4–494.3 ACFM
    Ultimate pressure:
    0.075 TORR

    Learn more
  • R5 RA 1000/1600 A PLUS
    R5 RA 1000/1600 A PLUS

    Nominal pumping speed:
    Min. 258.9 ACFM Max. 1059.3 ACFM
    Ultimate pressure:
    0.225 TORR

    Learn more
  • R5 RA 1000/1600 B
    R5 RA 1000/1600 B

    Nominal pumping speed:
    Min. 710.0 ACFM Max. 1060.0 ACFM
    Ultimate pressure:
    0.225 TORR

    Learn more
  • R5 RA/RC 0010/0016 C
    R5 RA/RC 0010/0016 C

    Nominal pumping speed:
    Min. 7.1 ACFM Max. 11.2 ACFM
    Ultimate pressure:
    Min. 15 TORR Max. 0.375 hPa(mbar)

    Learn more

COBRA NC/NX

  • Dry screw vacuum pump technology with low maintenance costs and without oil emissions
  • High pumping speeds for increased productivity
  • Manufactured in an IATF (International Automotive Task Force) 16949:2016 certified plant

Learn more about:

  • COBRA NC 0100–0300 B
    COBRA NC 0100–0300 B

    Nominal pumping speed:
    Min. 76.5 ACFM Max. 225.0 ACFM
    Ultimate pressure:
    ≤ 0.0075 TORR

    Learn more
  • COBRA NC 0400–1000 B/C
    COBRA NC 0400–1000 B/C

    Nominal pumping speed:
    Min. 76.5 ACFM Max. 225.0 ACFM
    Ultimate pressure:
    ≤ 0.0075 TORR

    Learn more
  • COBRA NC 0600 C
    COBRA NC 0600 C

    Nominal pumping speed:
    353.1 ACFM
    Ultimate pressure:
    ≤ 0.0075 TORR

    Learn more
  • COBRA NC 0630–2000 B/C VR
    COBRA NC 0630–2000 B/C VR

    Nominal pumping speed:
    Min. 400 ACFM Max. 1530 ACFM
    Ultimate pressure:
    < 15 TORR

    Learn more
  • COBRA NC 2500 B
    COBRA NC 2500 B

    Nominal pumping speed:
    1471 ACFM
    Ultimate pressure:
    ≤ 0.75 TORR

    Learn more
  • COBRA NX 0450/0650 A
    COBRA NX 0450/0650 A

    Nominal pumping speed:
    Min. 247 ACFM Max. 383 ACFM
    Ultimate pressure:
    ≤ 0.075 TORR

    Learn more
  • COBRA NX 0950 A
    COBRA NX 0950 A

    Nominal pumping speed:
    559.1 ACFM
    Ultimate pressure:
    0.0075 TORR

    Learn more
  • COBRA NX 0950 A PLUS
    COBRA NX 0950 A PLUS

    Nominal pumping speed:
    529.7 ACFM
    Ultimate pressure:
    0.0075 TORR

    Learn more

MINK MM/MV

  • Latest dry claw vacuum technology
  • Nearly maintenance-free
  • Low energy consumption

Learn more aobut:

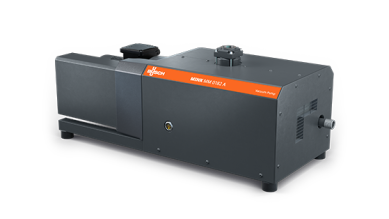

  • MINK MM 0084–0182 A
    MINK MM 0084–0182 A

    Nominal pumping speed:
    Min. 44.0 ACFM Max. 103.0 ACFM
    Ultimate pressure:
    Min. 45 TORR Max. 30 TORR

    Learn more
  • MINK MM 1104/1102 CVM
    MINK MM 1104/1102 CVM

    Nominal pumping speed:
    Min. 36.5 ACFM Max. 61.8 ACFM
    Ultimate pressure:
    300 TORR

    Learn more
  • MINK MM 1104–1142 BP
    MINK MM 1104–1142 BP

    Volume flow (at inlet):
    Min. 44.0 ACFM Max. 103.0 ACFM
    Overpressure:
    29 PSIG

    Learn more
  • MINK MM 1104–1142 BV
    MINK MM 1104–1142 BV

    Nominal pumping speed:
    Min. 44.0 ACFM Max. 103.0 ACFM
    Ultimate pressure:
    45 TORR

    Learn more
  • MINK MM 1202/1252 AV
    MINK MM 1202/1252 AV

    Nominal pumping speed:
    Min. 141.0 ACFM Max. 171.0 ACFM
    Ultimate pressure:
    75 TORR

    Learn more
  • MINK MM 1202–1322 AP
    MINK MM 1202–1322 AP

    Volume flow (at inlet):
    Min. 141.0 ACFM Max. 212.0 ACFM
    Overpressure:
    29 PSIG

    Learn more
  • MINK MM 1324/1322 AV
    MINK MM 1324/1322 AV

    Nominal pumping speed:
    Min. 112.0 ACFM Max. 212.0 ACFM
    Ultimate pressure:
    Min. 112.5 TORR Max. 45 TORR

    Learn more
  • MINK MM 1402/1502 AV
    MINK MM 1402/1502 AV

    Nominal pumping speed:
    Min. 277.0 ACFM Max. 353.0 ACFM
    Ultimate pressure:
    150 TORR

    Learn more
  • MINK MV 0040–0080 D Synchro
    MINK MV 0040–0080 D Synchro

    Nominal pumping speed:
    Min. 23.5 ACFM Max. 47.0 ACFM
    Ultimate pressure:
    30 TORR

    Learn more
  • MINK MV 0310 B
    MINK MV 0310 B

    Nominal pumping speed:
    203.0 ACFM
    Ultimate pressure:
    112.5 TORR

    Learn more
  • MINK MV 0312 B
    MINK MV 0312 B

    Nominal pumping speed:
    203.0 ACFM
    Ultimate pressure:
    112.5 TORR

    Learn more
  • MINK MV 0500/0600 B
    MINK MV 0500/0600 B

    Nominal pumping speed:
    Min. 276.6 ACFM Max. 353.1 ACFM
    Ultimate pressure:
    150 TORR

    Learn more
  • MINK MV 0502/0602 B
    MINK MV 0502/0602 B

    Nominal pumping speed:
    Min. 277.0 ACFM Max. 353.0 ACFM
    Ultimate pressure:
    150 TORR

    Learn more
  • MINK MV 1202 B
    MINK MV 1202 B

    Learn more

ZEBRA

  • Proven rotary vane vacuum technology
  • Robust construction
  • Stable pumping speed

Learn more about the ZEBRA product family

  • ZEBRA RH 0003–0010 B
    ZEBRA RH 0003–0010 B

    Nominal pumping speed:
    Min. 1.7 ACFM Max. 5.7 ACFM
    Ultimate pressure:
    5.025 · 10⁻³ TORR

    Learn more
  • ZEBRA RH 0015–0021 B
    ZEBRA RH 0015–0021 B

    Nominal pumping speed:
    Min. 8.5 ACFM Max. 11.9 ACFM
    Ultimate pressure:
    5.025 · 10⁻³ TORR

    Learn more
  • ZEBRA RH 0030–0090 B
    ZEBRA RH 0030–0090 B

    Nominal pumping speed:
    Min. 17.1 ACFM Max. 55.9 ACFM
    Ultimate pressure:
    5.025 · 10⁻³ TORR

    Learn more

VACTEST

  • Full measurement range (1600 to 5 · 10⁻¹⁰ mbar)
  • State-of-the-art micro-controller technology
  • Insensitive to shock venting

Learn more about the VACTEST product family

TAPIR

  • Highly sensitive leak detection
  • Spray test and sniffing leak detection with helium or hydrogen
  • Customizable parameter settings

Learn more about the TAPIR product family

The Busch promise

Products

Wide range of different vacuum technologies perfectly suited for all vacuum-assisted stages of lithium-ion battery production

IATF

Manufacturing in IATF-certified plants (International Automotive Task Force 16949: 2016)

Systems

Extensive centralized systems building competence

ARPQP

Unique support according to IATF standards with our exclusive ARPQP service

Service

Large variety of service packages, including our OO digital services

Savings

Up to 55% energy savings with our Busch solutions
