Liquid Ring Vacuum Pumps and Compressors

rendering_dolphin_3_4_cut_300dpi_cmyk_isolated
thumbnail_liquid_ring_technology

The marketing-cookies have to be accepted to watch this video.

Allow all cookies

OPERATING PRINCIPLE

An eccentrically mounted impeller rotates in a housing partially filled with operating fluid. The impeller blades dip into the fluid, and the centrifugal force exerted by their rotation forms a so-called liquid ring within the housing.

The pumped medium is transported in the spaces between the blades and the liquid ring. The eccentric rotation of the impeller alters the volume of these spaces. Thereby, the gas is drawn in, compressed and expelled.

In single-stage versions, compression is carried out once. In two-stage versions, the pumped medium is compressed again to allow higher vacuum levels to be achieved.

The operating fluid is usually water, but other liquids may be used if required by the process conditions.

Liquid ring vacuum pumps can be operated as a simple continuous flow system, or as a partial or total recirculation system. Operation as a compressor is also possible.

Our Portfolio of Liquid Ring Vacuum Pumps and Compressors

dolphin_lt_0170_a
DOLPHIN are the robust liquid ring vacuum pumps and compressors from Busch. This series encompasses decades of experience in the use and further development of liquid ring technology.

Discover our DOLPHIN product family

Our experience. Our success stories.

  • Vacuum Technology for Chemical and Pharmaceutical Processes

    Vacuum Technology for Chemical and Pharmaceutical Processes

    Selecting the right vacuum technology

    Learn more
  • This Year's “Innovation in Vacuum Busch Award” Presented to Quantafuel ASA

    This Year's “Innovation in Vacuum Busch Award” Presented to Quantafuel ASA

    Upgrading plastic waste into valuable products

    Learn more
  • Liquid Ring Vacuum Pumps - Classic Vacuum Technology and yet Still State of the Art

    Liquid Ring Vacuum Pumps - Classic Vacuum Technology and yet Still State of the Art

    Learn more

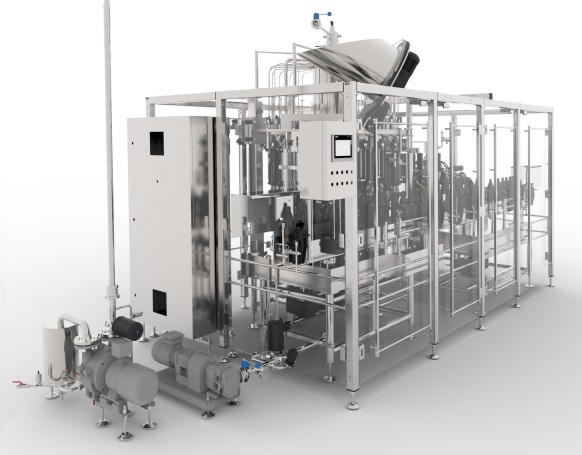

  • Improving Shelf Life Through Counterpressure Filling Systems with Reliable Vacuum Technology
