Lithium battery manufacturing
Vacuum solutions for the lithium-ion battery manufacturing process.
Lithium-ion batteries are at the heart of e-mobility. They can currently store more charge per unit of mass than other battery types – and make reasonable ranges possible.
Key processes during their manufacture are performed under vacuum. Our vacuum solutions are operated at major lithium-ion battery production sites the world over. They are renowned for their reliability in all stages of the lithium-ion battery production.
Vacuum is a critical requirement in every stage of the manufacturing process of lithium-ion batteries.
From mixing, drying, filling, degassing up to sealing. Without vacuum, many steps wouldn’t even be possible.
From mixing, drying, filling, degassing up to sealing. Without vacuum, many steps wouldn’t even be possible.
Slurry mixing
The initial mixing process of the slurry with lithium metal oxides, binding agents and solvents takes place under vacuum.This prevents air bubbles from getting into the process and ensures a pure, homogenous paste.
The result: improved cell capacity.
Matching products: R5 RA, COBRA NC/NX
Slurry drying
Vacuum is used in the drying process to gently remove moisture and other solvents.Vacuum drying can be performed in batches (single chamber) or in-line (multi-chamber system, typically seven to nine chambers).
Matching products: R5 RA, COBRA NC/NX
Electrolyte filling
The cell is evacuated with the help of vacuum to ensure that there is no remaining moisture or air. Afterwards the electrolyte filling also takes place under vacuum for an even distribution of the electrolyte within the cell.Matching products: R5 RA, COBRA NC/NX, MINK MM/MV, ZEBRA
Impregnating of the lithium-ion battery cell
The contact between the electrode and electrolyte is essential for the function and efficiency of the battery cell.Vacuum assists this process to ensure that contact is without voids.
Matching products: R5 RA, COBRA NC/NX
Degassing of the electrolyte
The electrolyte is degassed under vacuum to eliminate air bubbles. Thus, lithium-ions are able to move freely enabling efficient charging and discharging of the battery.Matching products: R5 RA, COBRA NC/NX
Our matching products
Our vacuum solutions are operated at major lithium-ion battery production sites. The world over. And are renowned for their reliability. In all stages of the lithium-ion battery production.| Slurry mixing | Slurry drying | Electrolyte filling | Impregnating | Degassing | |
| Vacuum pumps | |||||
| R5 RA | ✓ | ✓ | ✓ | ✓ | ✓ |
| COBRA NC/NX | ✓ | ✓ | ✓ | ✓ | ✓ |
| MINK MM/MV | ✓ | ||||
| ZEBRA | ✓ | ||||
| Measurement equipment | |||||
| VACTEST vacuum gauges | ✓ | ✓ | ✓ | ✓ | ✓ |
| TAPIR leak detectors | ✓ | ✓ | ✓ | ✓ | ✓ |
Product details
R5 RA
COBRA NC/NX
- Dry screw vacuum pump technology with low maintenance costs and without oil emissions
- High pumping speeds for increased productivity
- Manufactured in an IATF (International Automotive Task Force) 16949:2016 certified plant
Learn more about:

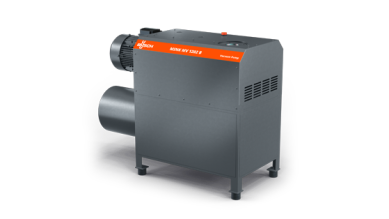

MINK MM/MV
- Latest dry claw vacuum technology
- Nearly maintenance-free
- Low energy consumption
Learn more aobut:
- MINK MM
- MINK MV
ZEBRA
VACTEST
The Busch promise
Products
Wide range of different vacuum technologies perfectly suited for all vacuum-assisted stages of lithium-ion battery production
IATF
Manufacturing in IATF-certified plants (International Automotive Task Force 16949: 2016)
Systems
Extensive centralized systems building competence
ARPQP
Unique support according to IATF standards with our exclusive ARPQP service
Savings
Up to 55% energy savings with our Busch solutions
